Cutting-Edge Technology
The Phoenix One-Piece device combines the latest, most advanced, and secure communication and tracking technologies, complying with the highest international standards.
Smarter Monitoring. Safer Communities.
Three integrated electronic monitoring solutions — the One-Piece GNSS Ankle Monitor, the Electronic Home Monitoring Device and the Victim Protection Device — operating on a single platform, with real-time monitoring and data delivery 24/7 through the Monitoring Centre.
One-Piece Device GNSS – 4G/3G/2G
4G Device
It is the first electronic ankle monitor with 4G technology, placing it among the best technologies on the market.
Increased Reliability
4G technology ensures broader coverage, while the tamper-proof strap immediately triggers an alarm if ruptured.
Integrated Platform
It can be used for Residential Monitoring and simultaneously with the Victim Protection device.
One-Piece Phoenix Device
The latest device launched by Synergye, it is one of the lightest electronic ankle monitors on the market, weighing only 100 grams. Its anatomical design fits securely around the ankle, providing comfort and discretion, allowing the monitored individual to maintain a normal lifestyle.

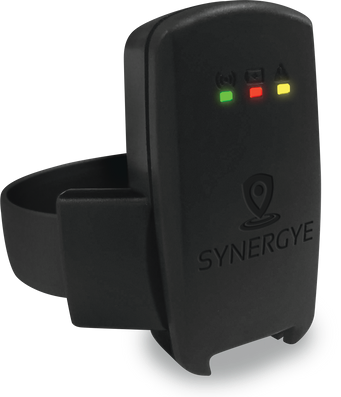

2G/3G/4G Communication
The device complies with the highest international safety standards. Using 4G, 3G, and 2G technology, it operates entirely on a web-based platform developed in Brazil, enabling real-time monitoring and data delivery 24/7.

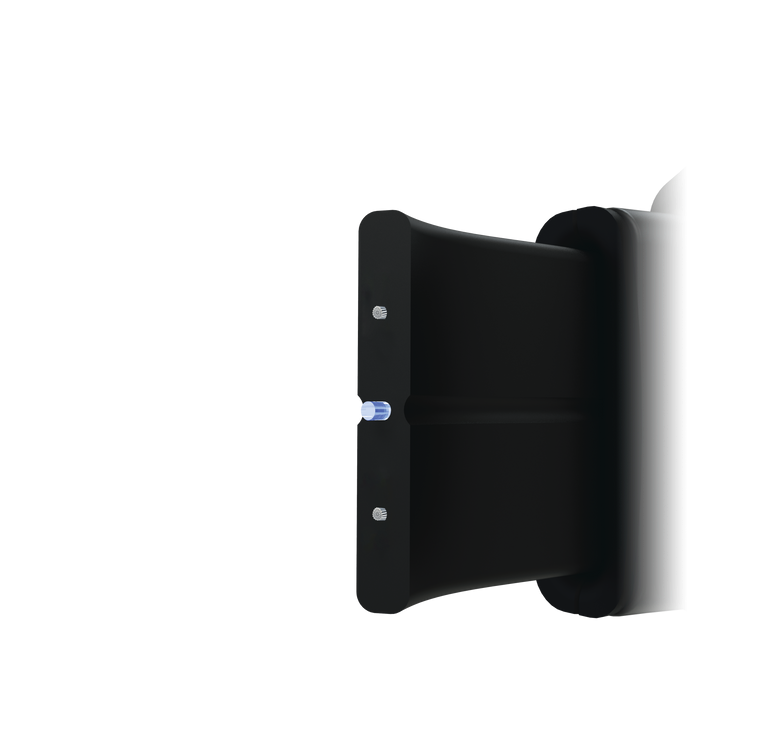

Fastening Strap
Combining fibre optics and metal wire technology, the system is safe, robust, and easy to install, ensuring effective monitoring and preventing tampering by the monitored person.
Auxiliary Tool
An auxiliary tool is provided for device removal. Easy to use, it enables safe and precise uninstallation and reinstallation without causing damage to the device. There is no need to cut the fixing strap.

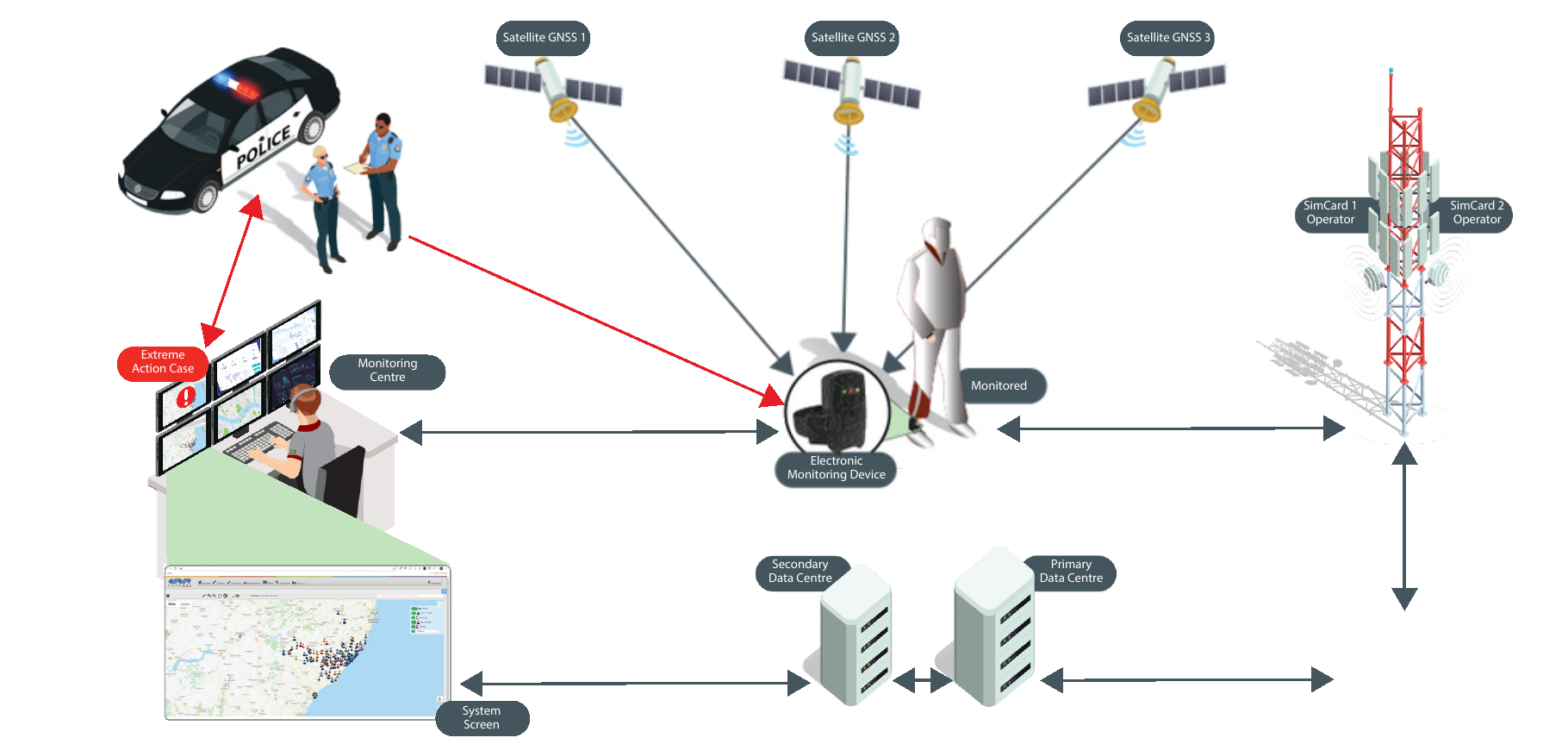

Infographic and Technical Specifications
One-Piece Device GNSS – 2G/3G/4G
Communication
- Operates with two cellular carriers.
- Supports 4G, 3G, and 2G technologies.
- Encrypted transmissions to prevent data cloning.
- Wi-Fi and Bluetooth connectivity.
- WPS technology.
Location
- Compatible with GPS and GLONASS constellations.
- Assisted GPS (AGPS).
- Location via LBS and/or Radio Frequency.
- Stores over 100,000 location records.
Violation
- Entry into or exit from restricted areas.
- Removal from the residential unit.
- Approaching the protected victim.
- Tampering or breakage of the fixing strap.
- Opening of the device case.
Signalling
- Visual alerts.
- Vibratory alerts.
- Sound alerts.
Battery
- Lasts over 36 hours (depending on configuration)
- Charging time under 2 hours
- Maintains full functionality while charging
- Supports recharging with a portable charger
Physical Characteristics
- Fixing strap reinforced with optical fibre
- Dimensions: 78 × 33 × 87 mm
- Weight: 100 g
- Operating temperature: -10 °C to 60 °C
- Waterproof, IP68-rated
Electronic Home Monitoring Device
Cutting-Edge Technology
The Phoenix One-Piece device combines the latest, most advanced, and secure communication and tracking technologies, complying with the highest international standards.
Better Accuracy
It enables tracking in areas without GPS signal such as indoor environments.
Greater Reliability
It features a motion sensor that prevents the Residential Unit device from being moved from its installation site and detects any tampering with the monitored person's location.
Integrated Platform
It can be used with both the Phoenix TAG and the One-Piece 3G, depending on the customer's needs.

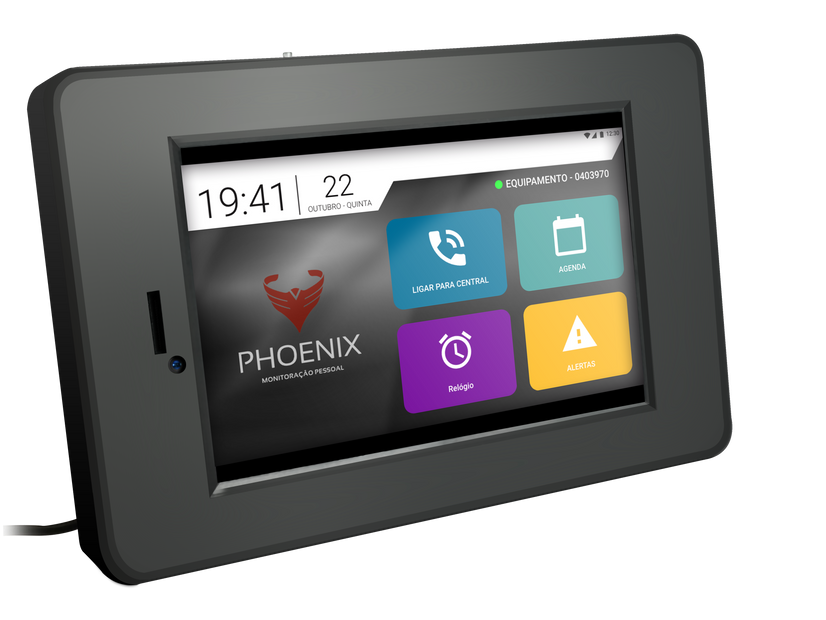

Phoenix – Residential Unit
The Synergye Residential Unit enables indoor tracking of the monitored person by using radio frequency to communicate with the electronic monitoring device. If a gap is detected between the Residential Unit and the device, an alarm is immediately sent to the Monitoring Centre.

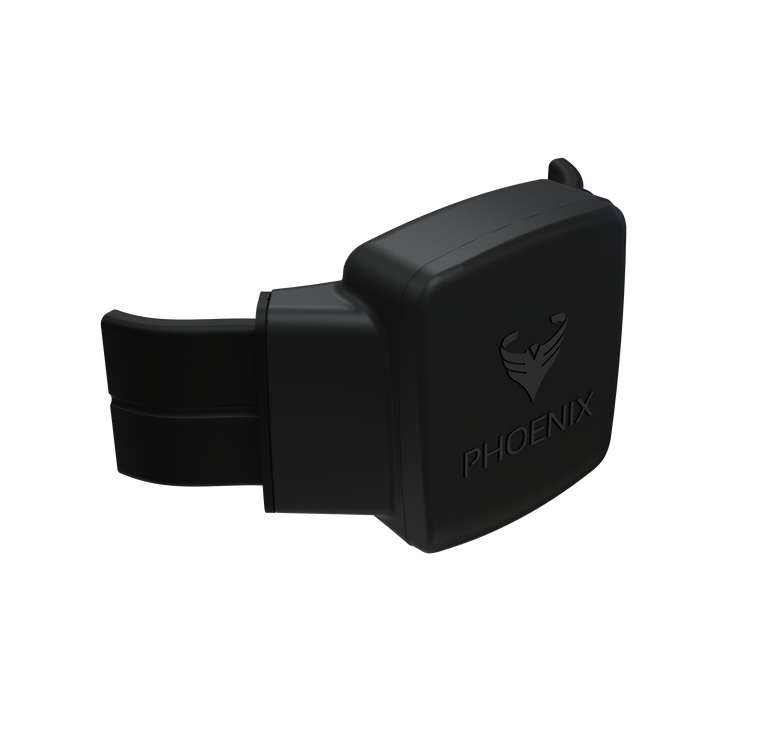

Phoenix – TAG
Weighing only 40 grams, it is the lightest device on the market, offering comfort and discretion to the monitored person. It uses advanced, secure technology that communicates with the Residential Unit via radio frequency.

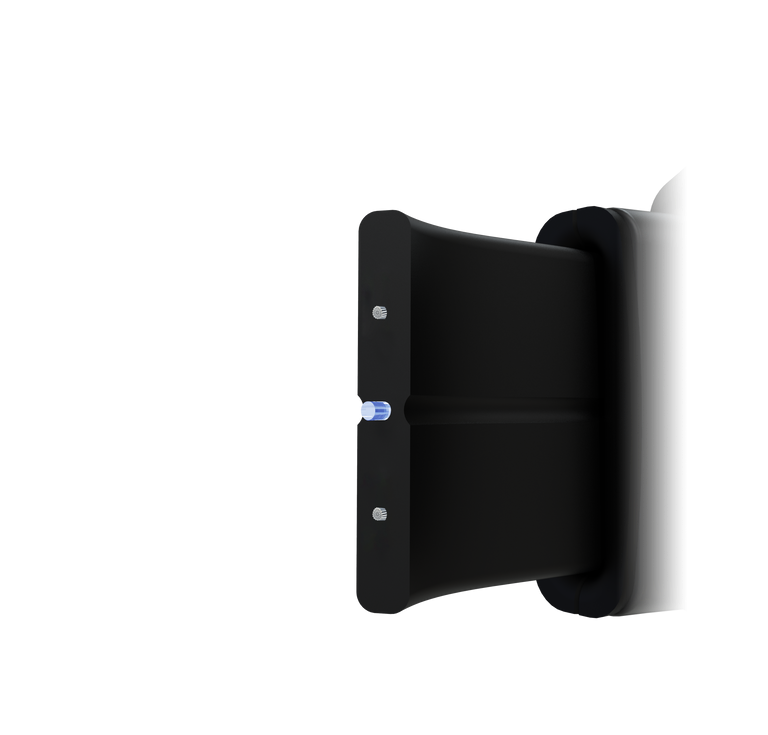

Fastening Strap
Combining fibre optics and metal wire technology, the system is safe, robust, and easy to install, ensuring effective monitoring and preventing tampering by the monitored person.

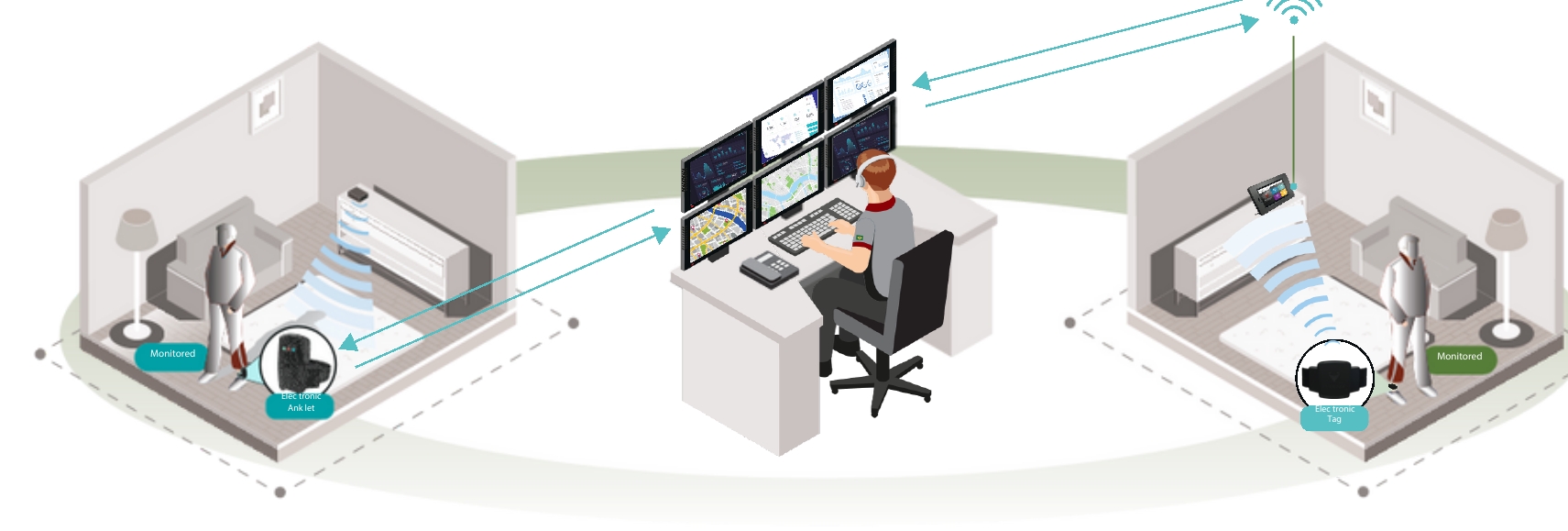

Infographic and Technical Specifications
GNSS One-Piece Monitoring – 2G/3G
Internal monitoring is performed by the GNSS 2G/3G One-Piece Unit. If the monitored person departs from the Residential Unit, an alarm is immediately sent to the Monitoring Centre.
Monitoring by Phoenix TAG
Internal monitoring is performed by the Residential Unit via radio frequency. In the event of an absence, an alarm is immediately sent to the Monitoring Centre.
Residential Unit
Communication
- Via 3G and/or 4G
- Bidirectional voice calls
- Communication with radio-frequency devices
Violations
- Opening the unit's box
- Moving the unit
- Lack of power supply to the unit
Physical characteristics
- Backup battery lasting over 48 hours
- Operates on 110V to 220V power supply
Phoenix – TAG
Communication
- Radio frequency.
Violations
- Removal of the unit from the residential location
- Opening the unit's case
- Breaking or tampering with the fixing strap
Physical characteristics
- Dimensions: 55 × 38 × 75 mm
- Weight: 40 g
- Battery life: over 24 months
- Power supply: 110V to 220V
- Reinforced fixing strap
Victim Protection Device
Cutting-Edge Technology
By activating the panic button, the device automatically starts recording the ambient sound and alerts the Monitoring Centre.
Discretion
By using the solution, the victim can remain safe without embarrassment. After all, it is the aggressor who needs to be monitored—the victim only requires protection.
Greater Reliability
The system monitors the aggressor's approach, and also allows the victim to make an emergency call to the Security Centre.
Integrated Platform
Compatible with the Phoenix, the GNSS Victim Devices, as well as the One-Piece Device (2G/3G).

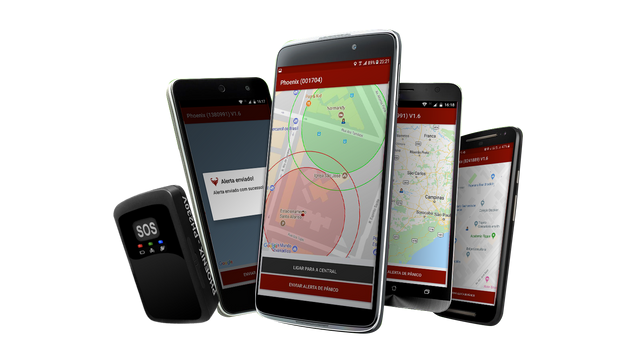

Discreet Protection
The electronic monitoring solution for domestic violence is a sophisticated proximity notification system designed to protect victims. Using GNSS location and/or radio frequency monitoring, the platform tracks both the aggressor's movements and the protected victim, 24 hours a day.
The solution detects if an aggressor is within a safety distance from the victim—previously configured and determined by judicial measures—allowing alerts to be activated if the aggressor approaches the predetermined radius. With a modern and secure interface, communication between the victim and the Monitoring Centre is fast and direct.
Main Features
- Multiple alerts when the aggressor approaches.
- Panic button that notifies the Monitoring Centre, with visual, vibratory, and sound alerts.
- Tracks and records the aggressor's movements and behaviour.
- Automatically executes all predetermined victim protection protocols.
- When the panic button is pressed, an audio and video channel is automatically transmitted to the Monitoring Centre.
- Supports monitoring of a single victim against multiple offenders, or multiple victims against a single offender.

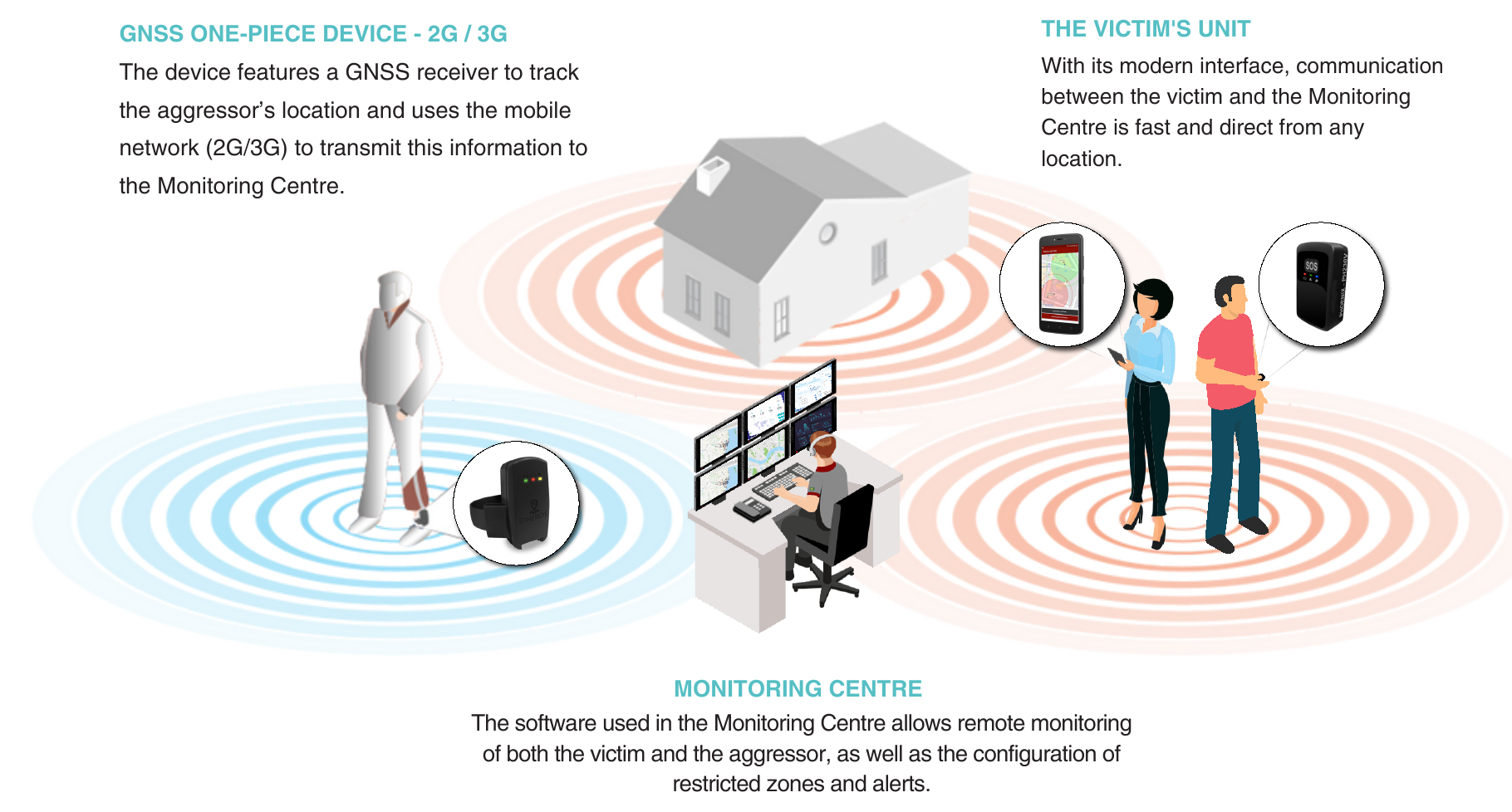

Infographic and Technical Specifications
Victim Protection Device
Communication
- Compatible with up to 2 mobile carriers.
- Supports 2G, 3G or 4G technologies.
Location
- Uses the GPS and GLONASS constellations.
- Assisted GPS (AGPS).
- Location via LBS and/or radio frequency.
- Stores over 100,000 positions on the mobile app.
- Stores over 50,000 positions on the device.
Monitored Violations
- Aggressor approaching the victim.
- Aggressor entering the exclusion zone.
- Victim activating the panic button.
Alarm Signalling
- Visual alerts.
- Sound alerts.
- Vibratory alerts.
Battery Life
- Lasts over 24h (depending on configuration).
Mobile Physical Characteristics
- Dual Sim device with GPS.
- Android operating system.
- Minimum 5-inch display.
- HD video recording camera.

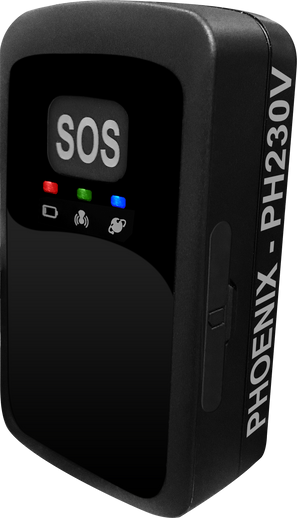

Characteristics of the Victim's Device
- Dimensions: 38.5 x 23.5 x 68.5 mm.
- Weight: 60 g.
- Operating temperature: -10 ºC to 55 ºC.
- Battery: 1300mAh LiPo.
